外形寸法図

  • 文字が読みにくい場合は、CADもしくはマニュアルをご確認ください。

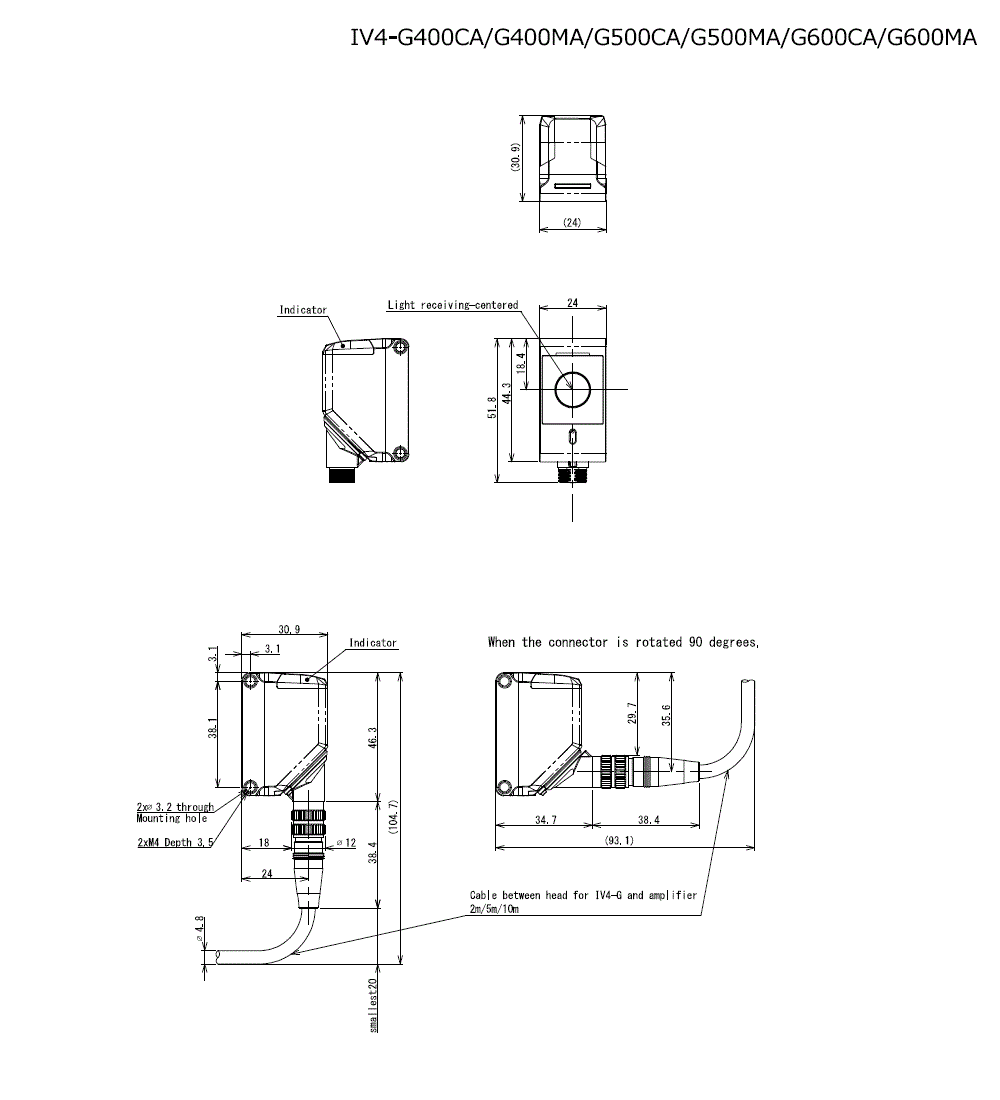

IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-87908 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-87909 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-87910 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-88642/88643 Dimension
IV4-G500CA/G500MA/OP-88909 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-88962/88963/88964 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05/OP87908 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05/OP87909 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05/OP87910 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD10 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD10/OP-87908 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD10/OP-87909 Dimension
IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD10/OP-87910 Dimension

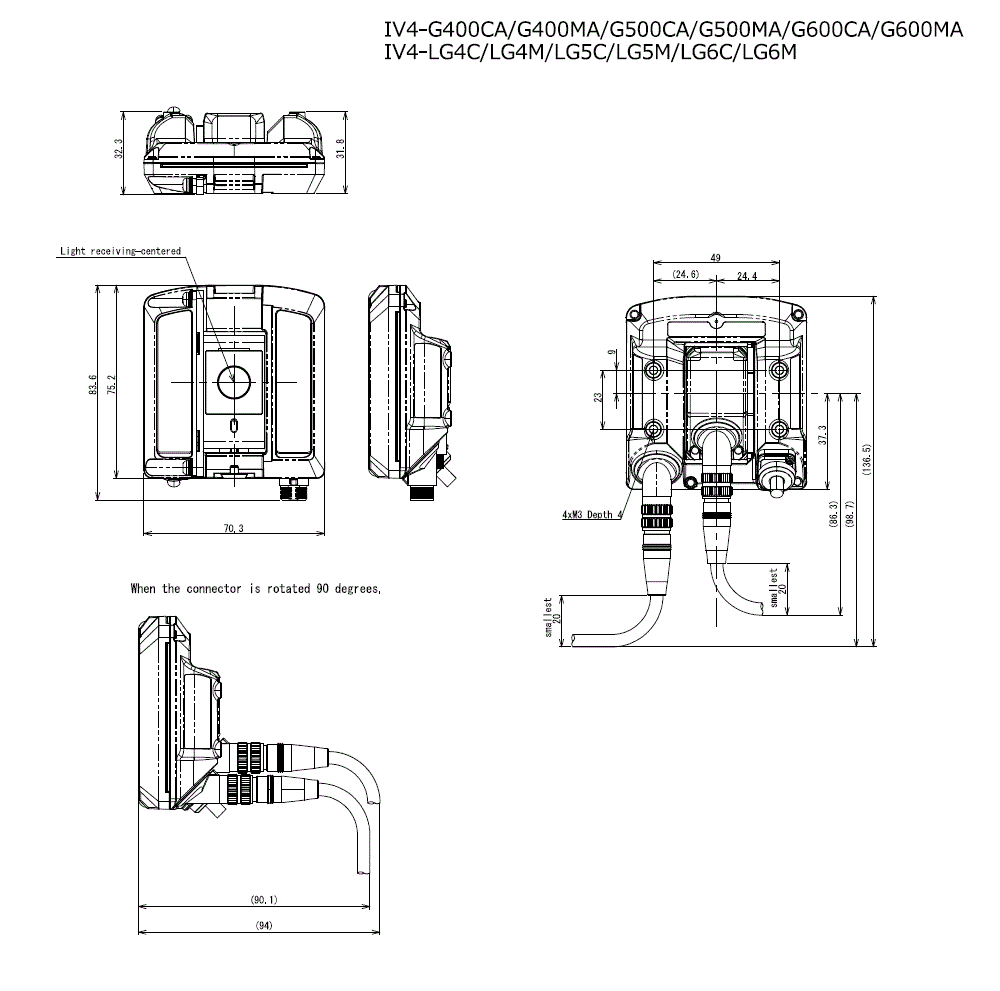

IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG4M/LG4C/LG5C/LG5M/LG6C/LG6M Dimension

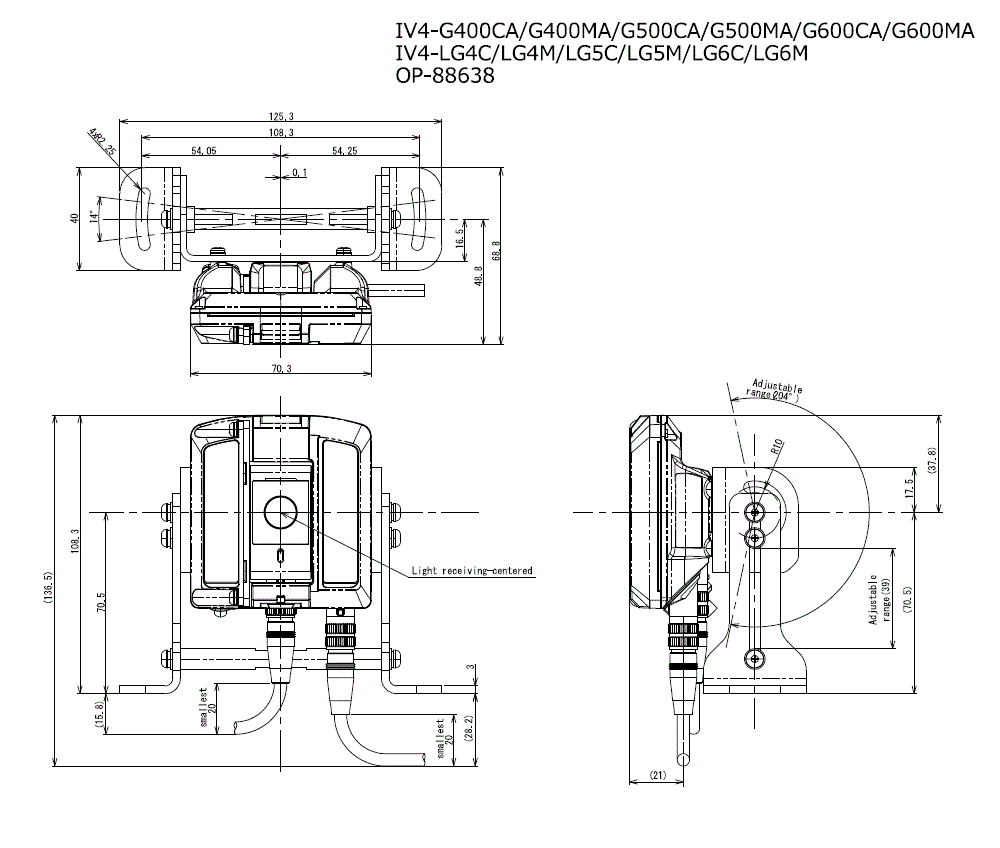

IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG4M/LG4C/LG5C/LG5M/LG6C/LG6M/OP-88638 Dimension

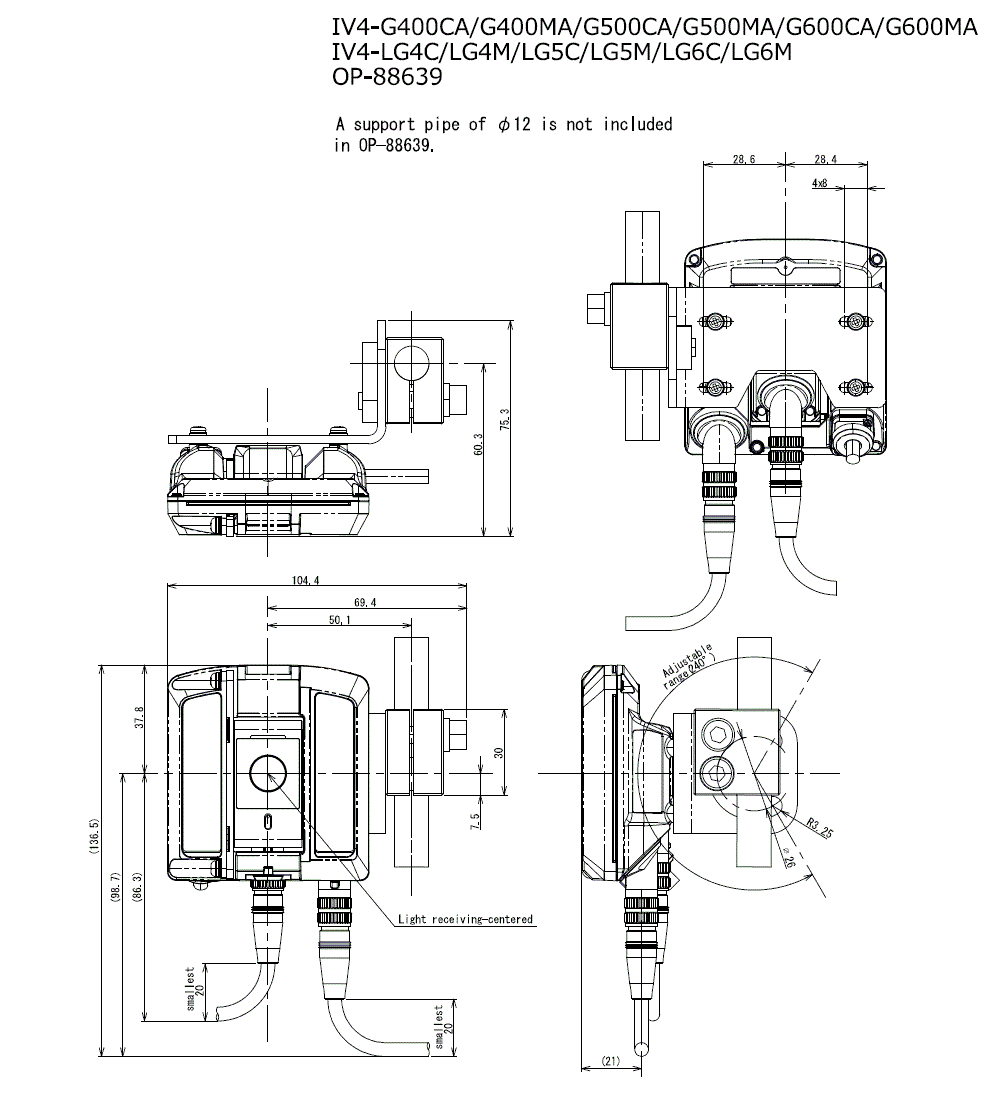

IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG4M/LG4C/LG5C/LG5M/LG6C/LG6M/OP-88639 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG4M/LG4C/LG5C/LG5M/LG6C/LG6M/OP-88646/88647 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG4M/LG4C/LG5C/LG5M/LG6C/LG6M/OP-88911 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG5C/LG5M/LG6C/LG6M/OP-88962/88963/88964 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG5C/LG5M/LG6C/LG6M/OP-88638/88962/88963/88964 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG5C/LG5M/LG6C/LG6M/OP-88639/88962/88963/88964 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/LG5C/LG5M/LG6C/LG6M/OP-88911/88962/88963/88964 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-87908/88962/88963/88964 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-87909/88962/88963/88964 Dimension
IV4-G400CA/G400MA/G500CA/G500MA/G600CA/G600MA/OP-87910/88962/88963/88964 Dimension
